Extruded Technique 1000 Series Grade Electroplated Surface Transformer Copper Foil for High Conductivity

Certification : ISO9001, ASTM, JIS, GB, EN

MOQ : 1

Price : 1

Model NO. : A5754

Technique : Extruded

Grade : 1000 Series

Alloy : Alloy

Surface Treatment : Electroplating, Reflow Plating, Hot-DIP Plating

Production Capacity : 5000mt/Month

Chemical Composition : AI: REM, Cu: <=0.1, Zn: <=0.2, Fe: <=0.4, Cr: <=0.3, Mn: <=0.5, Si: <=0.4, Mg: 2.6-3.6, Ti: <=0.15

Tensile Strength : 190-240 N/m2 (O), 220-270 N/m2 (H22/H32), 240-280 N/m2 (H34)

Elongation : >=14% (O), >=3% (H22/H32/H34)

Temper : O, H22, H32, H34

Material Thickness : as required

Transport Package : Standard Export Package for Ocean Transportation

Slitting Machine : 1600mm, 450mm, 650mm

Shears : 850mm (flying shear), 650mm (shear cut)

Physics Properties : Tensile Strength: 190-280 N/m2, Elongation: 3-14%

Contact Now

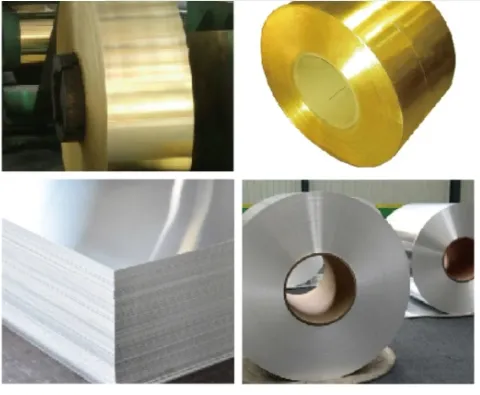

PRODUCT SHOW

Extruded Technique 1000 Series Grade Electroplated Surface Transformer Copper Foil for High Conductivity

CHEMICAL COMPOSITION

Alloy		Chemical Composition(%)
JIS	GB	AI	Cu	Zn	Fe	Cr	Mn	Si	Mg	Ti
A1050	1050	REM	<=0.5	<=0.05	<=0.4	/	<=0.05	<=0.25	<=0.05	<=0.03
A3105	3105	REM	<=0.3	<=0.4	<=0.7	<=0.2	0.3-0.8	<=0.6	0.2-0.8	<=0.1
A5052	5052	REM	<=0.1	<=0.1	<=0.4	0.15-0.35	<=0.10	<=0.25	2.2-2.8	/
A5754	5754	REM	<=0.1	<=0.2	<=0.4	<=0.3	<=0.5	<=0.4	2.6-3.6	<=0.15
A6061	6061	REM	0.15-0.4	<=0.25	<=0.7	0.04--0.35	<=0.15	0.4-0.8	0.8-1.2	/
Features and Use	Welding and corrosion resistant performance is good, excellent processing performance are widely uesd in aerospace, automotive manufacturing, packing, printing, electronic communications and decoration,etc.

PHYSICS PROPERTIES

JIS	Temper	Tensile Strength(N/m²)	Elongation(%)	Attention
A1050	O	60-100	>=20	Elongation,according to the thickness shall prevail.
A3105	O	100-155	>=1
A5052	H34	235-285	>=3
A5754	O	190-240	>=14
	H22/H32	220-270	>=3
	H34	240--280	>=3
A6061	T6	>=265	>=8

Remarks:confirmed, can provide surface covered with film, nickel plating materials.

Company advantage

Extruded Technique 1000 Series Grade Electroplated Surface Transformer Copper Foil for High Conductivity

Quality is guaranteed. Since its establishment, JIACHEN is committed to providing high quality products and efficient service and has been adhering to the road of high-tech development.
Technology equipment is advanced. Our partners have high-precision, high-efficiency modern professional production equipment: import slitting machine(1600mm), precision slitting machine (450mm), precision slitting machine(650mm), imports of horizontal shears(flying shear 850mm) Shears(shear cut 650mm), the overall production equipment in the same industry-leading level.
Extruded Technique 1000 Series Grade Electroplated Surface Transformer Copper Foil for High Conductivity

Service is trustworthy. We have been a high-quality supplier of made-in-china network, has been committed to foreign trade, foreign trade capacity has been audited by made-in-china network. We sincerely and warmly welcome you to visit and give advice to improve our shortcomings, learn new technologies, improve product performance, and mutual benefit.
